Asphalt Plant 220t/h, Item AMP3000-C 3000kg per batch mixing system

Asphalt Mixing Plant

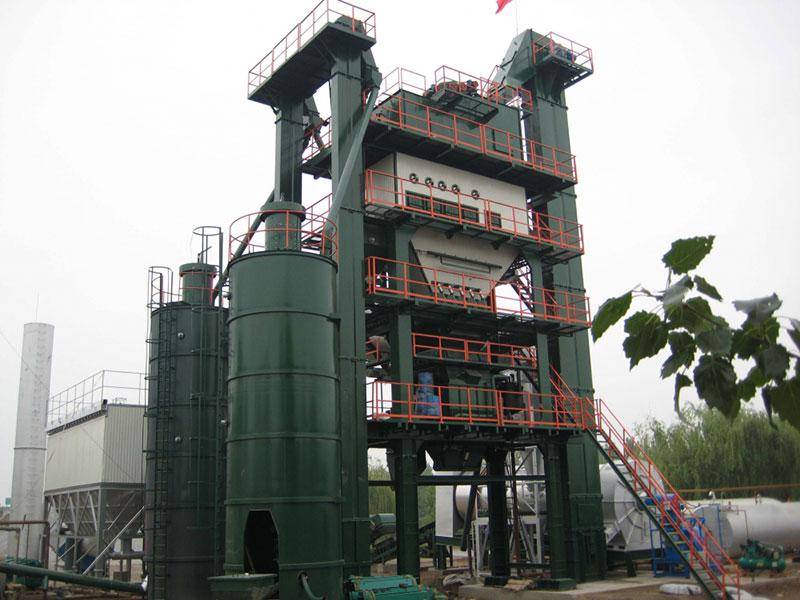

AMP3000-C asphalt plant has a maximum output of 220t/h. The vibrating screen of this equipment adopts drawer-type design to facilitate the replacement of screen mesh. The bearing is always immersed in oil to get sufficient lubrication, so the service life of the bearing is prolonged.

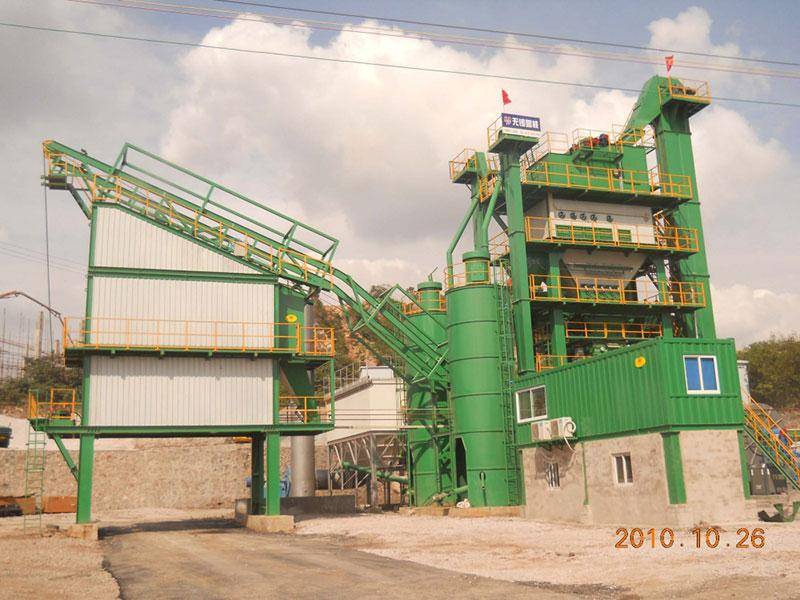

In 2016, a customer in Jiangyin, China, purchased the asphalt plant. Taking into consideration the local geographical environment, we installed dust processing devices, sulfur dioxide processing devices and noise reduction devices, which significantly reduced the amount of dust, smoke and noise generated environment during operation, making this equipment ideal for environmental protection work. Standard information is shown below, and if you would like to know more, please do not hesitate to contact us.

• Maximum output: 220t/h
• Mixing capacity: 628kg/batch
• Total installed capacity (excluding finished product bin): 330kw
• Total floor area: 60x40=2400m²
• Maximum fuel consumption: 6.2kg/t
• Maximum dust emission concentration: 75 mg/Nm³
• Finished product temperature: 130-160℃
• Maximum ambient noise: 85dB(A)
• Maximum ear noise: 70dB(A)
• Dust removal mode: pulse bag filter
• Fuel: diesel, heavy oil and gas

• The asphalt tank, finished product bin and powder bin can be mounted according to specific project needs.
• Different fuel types can be chosen, including diesel, heavy oil and gas.
• An opening was designed on the mixing cylinder to prepare for adding more accessory equipment, such as PRD hot recycling equipment, SMA wood fiber adding device and more.
